Full-colour show laser systems from 3 to 120 watts — pure direct-inject diodes, output measured at the projector window. Engineered and built in-house in Guangzhou, shipped worldwide.
Choose by venue and throw. Three core full-colour RGB series, plus two specialty units — all pure direct-inject diode.
Compact, mobile and install-friendly. Large indoor shows and small-to-mid outdoor events.

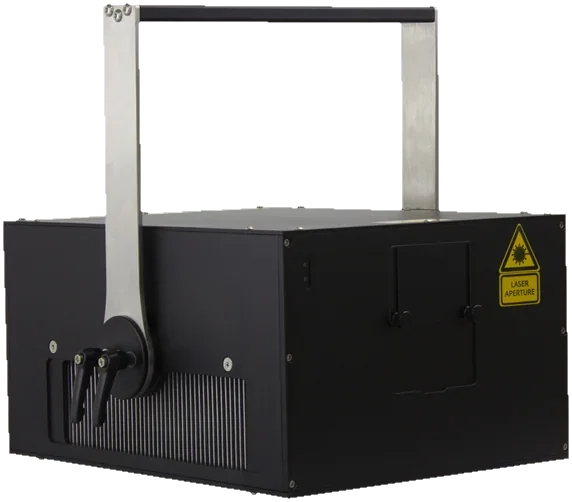

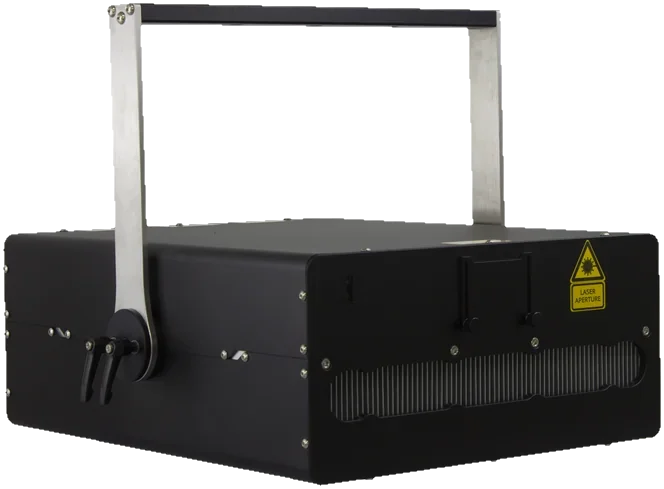

From club entry-level to mega outdoor. High output at honest value — the workhorse series.

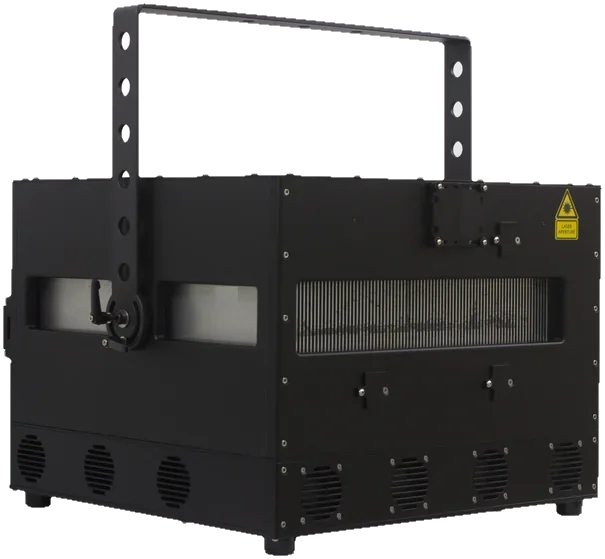

Fully weatherproof, TEC-cooled. Stadiums, arenas, mega-festivals and permanent outdoor installs.

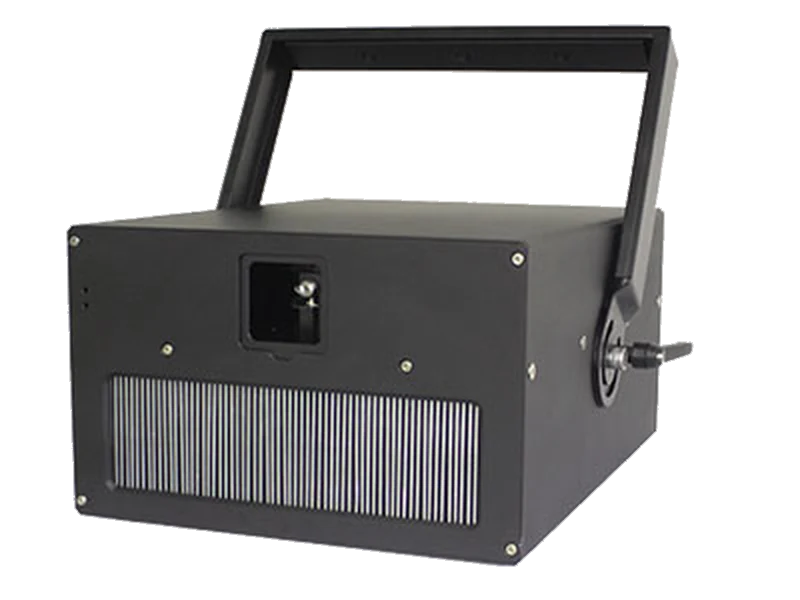

Single-colour green projectors for crisp beam and aerial work at a true 532 nm DPSS green — the brightest green to the eye.

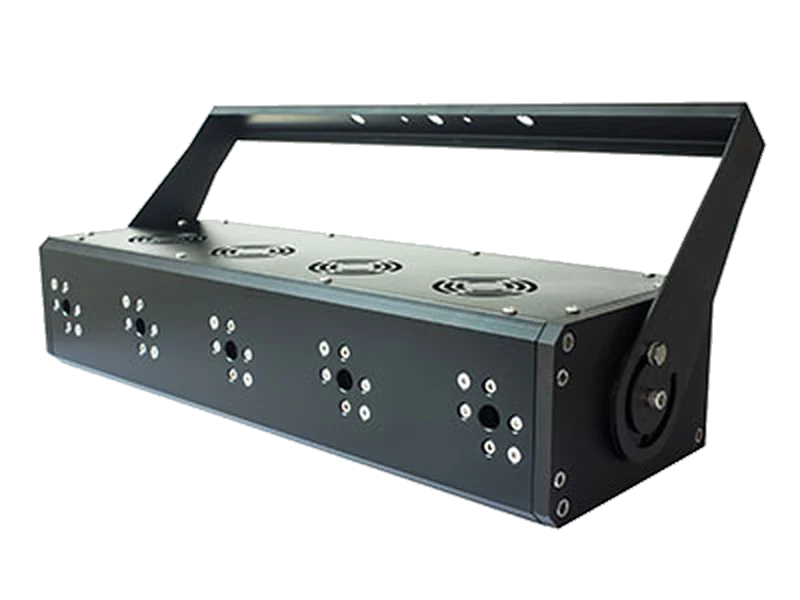

Five ultra-low-divergence RGB beams (< 0.35 mrad). DMX atmosphere, beam-rain and aerial effects.
Built since 2007 by people from the laser light-source industry — not a box-assembly house. High-end show lasers at a price real professionals can justify.
Pure 637 / 520 / 445 nm diode sources — no DPSS, no aging crystals. Instant-on, stable colour, long service life.
Power is measured at the projector window, not summed from raw diode ratings on a datasheet. What you read is what hits the air.
Many key optics and components are specifically designed and produced in the EU for premium-tier build quality.
Active thermo-electric cooling with IP68 thermal-controlled fans holds output stable through long sets and hot venues.
From road-ready IP54 to the fully weatherproof, dust-proof IP65 TRIUMPH family for permanent outdoor installation.
ILDA in/out with Pangolin FB4 and Moncha.lite2 support, plus key-switch, scan-fail-safe and interlock as standard.
~90% of Chinese "laser factories" assemble bought-in modules. Able builds the hard parts in-house. Here's what that means on the spec sheet.
| Able Laser | Typical assembly-house projector | |
|---|---|---|
| Light source | ✓Pure direct-inject diode — 637 / 520 / 445 nm | Mixed diode / DPSS or re-badged bought-in modules |
| Power rating | ✓Measured at the projector window | Summed from raw diode ratings on paper |
| Engineering | ✓In-house modules, galvos & control boards | Assembly of bought-in commodity modules |
| US compliance | ✓FDA / CDRH variance held since 2009 | Often none — can't legally ship to the US |
| EU compliance | ✓CE + RoHS | Varies / unverified |
| High-power cooling | ✓TEC Peltier + IP68 thermal fans | Basic fan cooling |
| Weatherproofing | ✓Up to IP65 — fully outdoor (TRIUMPH) | Frequently indoor-rated only |
| Control | ✓ILDA + Pangolin FB4 + Moncha.lite2 | Limited or proprietary control |
| Safety | ✓Key switch, scan-fail-safe & interlock — standard | Inconsistent across units |
| Warranty & support | ✓24 months, manufacturer-direct | Short / via trading-company middleman |
From a 200-cap club to a stadium headline — there's an Able system matched to the venue, the throw and the weather.
Compact pure-diode units that cut through haze in dense rooms — instant-on colour, club-friendly footprint.
High-output beams for long-throw outdoor crowds. Road-cased, FB4-ready and built to repeat night after night.
Mega-power IP65 projectors that fill the biggest rooms in the world with saturated, sharp full colour.
Weatherproof, dust-proof and TEC-cooled — engineered to run outdoors, year-round, unattended.
Landmark illumination, fountain and façade shows in full colour — or a pure 532 nm green that reads brightest to the eye.
Ultra-low-divergence beam arrays (<0.35 mrad) for aerial, beam-rain and atmospheric looks alongside scanning shows.
Manufacturer-direct doesn't mean compromise. Pure direct-inject diodes on the same 637 / 520 / 445 nm architecture the premium brands use — with output stated honestly at the projector window, not summed on a datasheet.
The number in each name is the optical power in milliwatts, stated at the projector window. Pick a series.
| Model | Output @ window | R / G / B (mW) | Scanner | Ingress | Weight | Power |
|---|---|---|---|---|---|---|
| PRIME RGB 3000 | 2,700–2,900 mW | 680 / 1000 / 1600 | 40 Kpps @8° | IP54 | 11 kg | 280 W |
| PRIME RGB 5300 | 4,500–4,900 mW | 1480 / 2000 / 2000 | 40 Kpps @8° | IP54 | 11 kg | 280 W |
| PRIME RGB 7500 | 6,200–6,600 mW | 2220 / 2000 / 4000 | 40 Kpps @8° | IP54 | 11 kg | 280 W |
| PRIME RGB 11000 | 9,000–10,500 mW | 3060 / 4000 / 4000 | 40 Kpps @8° | IP54 | 16 kg | 450 W |
| PRIME 5300 / 7500 / 11000 GT | + grating module | 5 built-in effects | 40 Kpps @8° | IP54 | 14–18 kg | — |
| Model | Output @ window | Scanner | Ingress | Weight | Power |
|---|---|---|---|---|---|
| ARCHER RGB 5000 | 4,800–5,000 mW | 40 Kpps @8° | IP52 | 8.3 kg | 350 W |
| ARCHER RGB 6000 | 5,700–6,000 mW | 40 Kpps @8° | IP52 | 8.3 kg | 350 W |
| ARCHER RGB 8000 | 7,800–8,200 mW | 40 Kpps @8° | IP52 | 8.3 kg | 350 W |
| ARCHER RGB 10000 | 9,500–10,000 mW | 40 Kpps @8° | IP52 | 8.3 kg | 350 W |
| ARCHER RGB 12000 | 11,500–12,500 mW | 40 Kpps @8° | IP52 | 15 kg | 350 W |
| ARCHER RGB 20000 | 20,000–21,000 mW | 30 Kpps @8° | IP52 | 28 kg | 850 W |
| ARCHER RGB 30000 | 30,000–32,000 mW | 30 Kpps @8° | IP52 | 28 kg | 850 W |
| ARCHER RGB 40000 | 40,000–42,000 mW | 30 Kpps @8° | IP52 | 28 kg | 850 W |
| ARCHER RGB 50000 | 49,000–51,000 mW | 25 Kpps @8° | IP52 | 28 kg | 1200 W |
| ARCHER RGB 60000 | 58,000–60,000 mW | 25 Kpps @8° | IP52 | 28 kg | 1200 W |
| Model | Output @ window | Scanner | Ingress | Weight | Power |
|---|---|---|---|---|---|
| TRIUMPH RGB 20000 | 19,000–21,000 mW | 35 Kpps @8° | IP65 | 24.5 kg | 700 W |
| TRIUMPH RGB 30000 | 28,000–32,000 mW | 30 Kpps @8° | IP65 | 35 kg | 1000 W |
| TRIUMPH RGB 40000 | 39,000–41,000 mW | 30 Kpps @8° | IP65 | 35 kg | 1000 W |
| TRIUMPH RGB 50000 | 49,000–51,000 mW | 30 Kpps (EMS 9000) | IP65 | 43 kg | 1200 W |
| TRIUMPH RGB 60000 | 58,000–60,000 mW | 30 Kpps (EMS 9000) | IP65 | 43 kg | 1200 W |
| TRIUMPH RGB 100000 | 98,000–102,000 mW | 30 Kpps (EMS 9000) | IP65 | 77 kg | 2700 W |
| TRIUMPH RGB 120000 | 118,000–120,000 mW | 30 Kpps (EMS 9000) | IP65 | 77 kg | 2700 W |
| Model | Output | Wavelength | Divergence | Ingress | Weight |
|---|---|---|---|---|---|
| AURORA G 5000 | 5,000–5,500 mW | 532 nm DPSS | <0.9 mrad | IP54 | 11 kg |
| AURORA G 8000 | 8,000–8,500 mW | 532 nm DPSS | 1.1–1.2 mrad | IP54 | 21 kg |
| AURORA G 10000 | 10,000–11,000 mW | 532 nm DPSS | 1.1–1.2 mrad | IP54 | 21 kg |
| AURORA G 15000 | 15,000–17,000 mW | 532 nm DPSS | 1.1–1.2 mrad | IP54 | 21 kg |
| AURORA G 20000 | 20,000–22,000 mW | 532 nm DPSS | 1.1–1.2 mrad | IP54 | 21 kg |
| Spec | BARRAGE RGB 1500 |
|---|---|
| Type | 5-output full-colour beam array (no scanning) |
| Output per window | 280–310 mW (R 110–120 / G 90–100 / B 90–100) |
| Beam Ø / divergence | <4.5 mm · <0.35 mrad (ultra-low) |
| Control | DMX in/out (3-pin XLR) |
| Cooling / ingress | TEC Peltier + 4 fans · IP47 |
| Size / weight | 500 × 106.5 × 162 mm · 8.5 kg |
Pure-diode RGB in the field — festivals, arenas, clubs and permanent installations worldwide.
Manufacturer-direct means you talk to the people who build the projector. Here's what to know before you buy.
The model number is the optical power in milliwatts. Match it to venue and throw:
Every scanning projector drops into a standard pro pipeline:
Compliant and show-safe out of the box:
24-month warranty on projectors (12 on the BARRAGE array). Manufacturer-direct spares, servicing and technical support — shipped worldwide from Guangzhou.
The questions every show-laser buyer asks — answered straight.
The PRIME, ARCHER and TRIUMPH RGB ranges are pure direct-inject diode (637 / 520 / 445 nm) — no DPSS, no aging crystals, instant-on and colour-stable. The AURORA G series is the one exception: a 532 nm DPSS green.
At the projector window — the real power that leaves the unit — not summed from raw diode ratings on a datasheet. What you read is what hits the air.
Every scanning projector has ILDA in/out and runs on any ILDA console, with optional embedded Pangolin FB4 and Moncha.lite2. The BARRAGE beam array runs on DMX.
Yes — FDA / CDRH (variance held since 2009), CE and RoHS. Key switch, scan-fail-safe and remote interlock are standard on every model.
PRIME is IP54 and ARCHER IP52 (road-ready, covered outdoor). The TRIUMPH series is fully weatherproof IP65 with TEC Peltier cooling — built for permanent, year-round outdoor installation.
24-month warranty on TRIUMPH and PRIME GT models (12 on base PRIME and BARRAGE). Manufacturer-direct spares, servicing and technical support, shipped worldwide from Guangzhou.
Match the model number (optical power) to venue and throw. Send us the throw distance, audience size and control setup and we'll spec the right projector — talk to us here.
Almost certainly — 81–90% of production is exported (UK, Canada, India, Australia, Spain and beyond). Payment by T/T, L/C, PayPal, Western Union or card.
Send the throw distance, audience size and control setup — we'll spec the right projector and quote you direct from the factory. Fastest reply on WhatsApp.
